LT 508-S6 is a current sensor used for measuring DC, AC, and pulse currents. It features excellent accuracy, good linearity, low temperature drift, optimal response time, wide bandwidth, and strong anti-interference capability.

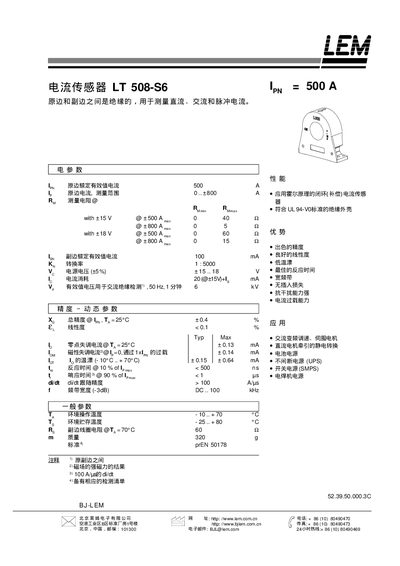

This handbook presents the technical data for the LEM LT508-S6 current transducer, including electrical ratings, accuracy, and mechanical characteristics. It is intended for engineers who need detailed information for selection and integration of the device.
Key specifications such as rated primary current, secondary output, accuracy, temperature range, and physical dimensions are listed, along with terminal connection details and compliance notes. This manual is written in Chinese.
| Secondary output current | 100 mA |
|---|---|
| Accuracy (at 25°C) | ±0.4 % |
| Operating temperature range | -10 °C to +70 °C |
| Supply voltage | +15 V |
| Frequency bandwidth | 0 Hz to 100 kHz |
It provides a secondary output current of 100 mA.
The device has an accuracy of ±0.4 % at 25 °C.
