Current transducers HAZ 4000..20000-SRI are for the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary.

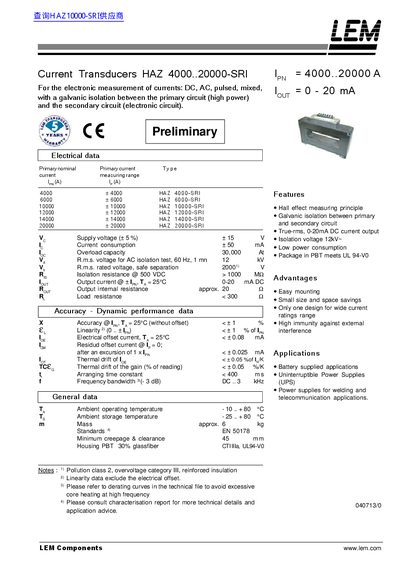

The document describes the LEM HAZ 4000..20000-SRI Current Transducers, designed for measuring DC, AC, pulsed, and mixed currents with galvanic isolation between high-power primary circuits and electronic secondary circuits. The devices utilize a Hall effect measuring principle to provide a true-rms, 0-20mA DC current output.
| Supply voltage | +15 V (+ 5 %) |
|---|---|
| Current consumption | + 50 mA |
| Overload capacity | 30,000 At |
| Rated voltage (safe separation) | 2000 V |
| Output current | 0-20 mA DC |
| Operating temperature | -10..+80 °C |
They use a Hall effect measuring principle.
Suitable applications include battery supplied systems, UPS, and power supplies for welding and telecommunication.
