LT 108-S7 is a current sensor used for measuring DC, AC, and pulse currents. It features high accuracy, good linearity, low temperature drift, fast response time, and wide bandwidth.
The LT108‑S7 is a current sensor designed for measuring DC and AC currents up to 150 A. It offers high accuracy, low temperature drift, and complies with safety standards such as UL94‑V0.

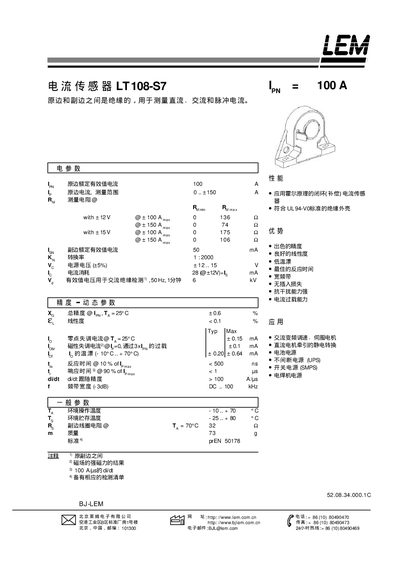

The handbook lists the sensor’s electrical characteristics, mechanical dimensions, operating and storage temperature ranges, and performance data such as accuracy (<0.1 %), linearity (<0.1 %), bandwidth (up to 100 kHz), and AC measurement frequency (50 Hz). This manual is written in Chinese.
| Operating temperature range | -10 °C to +70 °C |
|---|---|
| Flame retardant rating | UL94‑V0 |
It can operate from –10 °C up to +70 °C.
