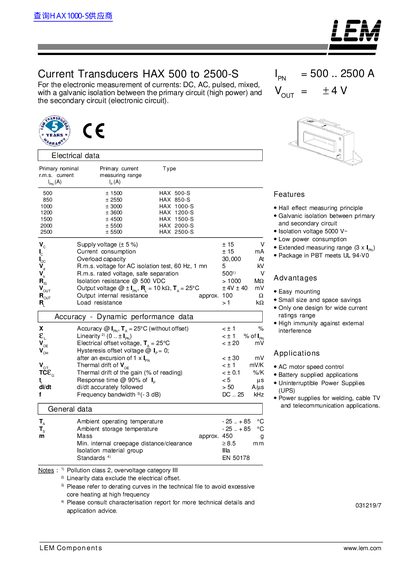

This document provides the main specifications and characteristics of the HAX series current transducers, including rated current range, supply voltage, output voltage, accuracy, etc.
The HAX 500‑2500‑S series are Hall‑effect current transducers for electronic measurement of DC, AC, pulsed and mixed currents with galvanic isolation between the high‑power primary circuit and the low‑power secondary circuit. They cover primary nominal currents from 500 A up to 2500 A and offer a supply voltage of +15 V, a current consumption of 15 mA, and an overload capacity of 30 000 A·s.
Key features include Hall‑effect measuring principle, 5000 V isolation voltage, low power consumption, compact size, and a single design covering a wide current range. Typical applications are AC motor speed control, UPS systems, welding power supplies, and cable‑TV or telecommunication power supplies. Dimensions and connector details are provided for easy mounting with M5 screws.
| Supply voltage | +15 V |
|---|---|
| Current consumption | 15 mA |
| Overload capacity | 30 000 A·s |
| Isolation resistance @ 500 VDC | > 1000 MΩ |
| Isolation voltage | 5000 V |
They use the Hall‑effect measuring principle.
The isolation voltage is rated at 5000 V.
