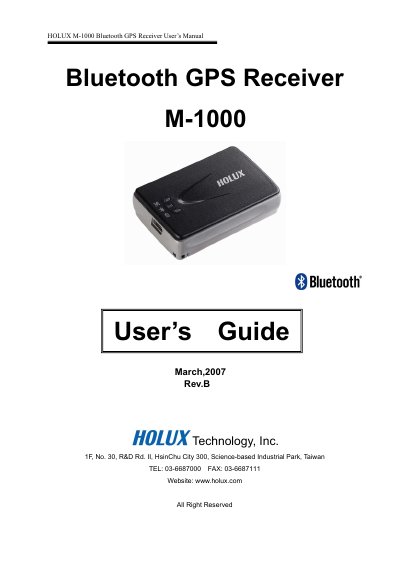

The HOLUX M-1000 Bluetooth GPS Receiver is a total solution GPS receiver with Bluetooth, UART interface, and built-in rechargeable battery for high sensitivity to tracking signal. The M-1000 design is based on the Media Tek Inc.(MTK) GPS solution-MT3318 low power architecture. The M-1000 is a dual-function GPS receiver that can transmit satellite information through Bluetooth to a PDA or notebook and also through the UART interface.
The HOLUX M-1000 is a compact Bluetooth‑enabled GPS receiver with a built‑in rechargeable Li‑ion battery, designed for applications such as car navigation, mapping, and field surveying. It tracks up to 32 satellites, offers fast reacquisition (0.1 s) and high sensitivity (‑159 dBm).
This manual covers the packing list, hardware description, Bluetooth and USB connections, driver installation, power management, specifications, warranty information, and troubleshooting steps. It also includes FCC compliance details and optional accessories.
| Chipset | MTK MT3318 |
|---|---|
| Channels | 32 parallel satellite‑tracking channels |
| Frequency | 1575.42 MHz |
| Receiver | L1, C/A code |
| Reacquisition Time | 0.1 second |
| Cold‑start Time | < 36 seconds |
| Battery Type | Built‑in rechargeable Lithium‑ion |
| Operating Voltage | 5 V DC ±5 % |
| Size | 65 × 43 × 17.6 mm |
| Weight | < 53 g |
The built‑in Li‑ion battery can power the M‑1000 for up to 23 hours in normal mode.
It can track up to 32 satellites simultaneously.
The receiver reacquires a satellite signal in 0.1 second.
