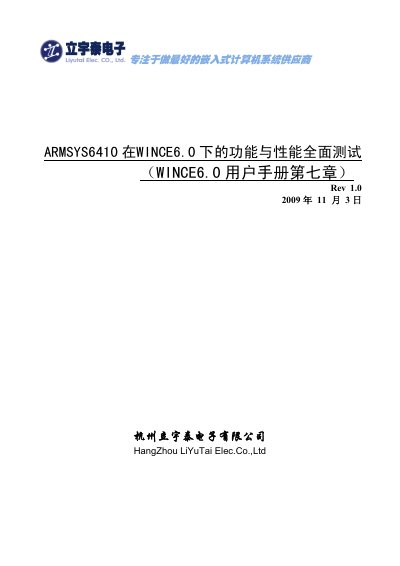

Hangzhou Liyutai ARMSYS6410 WINCE6.0 user manual

About this manual

This manual provides detailed testing procedures for the ARMSYS6410 embedded computer system running WinCE6.0, covering multimedia playback, 3D acceleration, JPEG decoding, camera preview, TV output, serial and infrared communication, storage card operations, Ethernet, NAND flash partitioning, keyboard, audio recording, LED indicators, and power management.

It includes step‑by‑step instructions, required test files, and configuration details to evaluate the hardware capabilities of the S3C6410 processor on the ARMSYS6410 board. This manual is written in Chinese.

What's inside

• Multimedia Comprehensive Test Software
• Audio/Video Playback
• 3D Acceleration Test
• JPEG Decoding Test
• Camera Preview and Encoding Test
• TV OUT Test
• Serial Port Communication Test
• Infrared Communication Test
• SD/MMC and CF Card Read/Write Test
• NandFlash Partition

Specifications

Frequently asked questions

How many matrix keyboard keys does the ARMSYS6410 provide?

The board provides nine matrix‑style keyboard keys.

Can the ARMSYS6410 read CF cards while the system is running?

No, hot‑plug is not supported; the CF card must be inserted before power‑on.

What size of onboard NAND flash does the ARMSYS6410 have?

It comes with a 256 MB onboard NAND flash that can be upgraded.

What do the LED indicators on the ARMSYS6410 signify?

LED1 shows idle (off) or busy (on); LED4 indicates the system tick when active.
