AD823 is a single-supply, 16MHz, rail-to-rail FET input amplifier produced by Analog Devices, with a power supply voltage range from 3V to 36V, an output voltage range from ground to supply voltage, a 500pF output capacitance load capability, an output current of 15mA, an output voltage swing of 16MHz, a low distortion of -108dBc, a low noise of 16nV/√Hz, and no phase inversion, which can be applied to battery-powered precision instruments, photodiode preamplifiers, active filters, 12-bit to 16-bit data acquisition systems, and medical devices.
The AD823 is a dual, 16 MHz, rail‑to‑rail FET‑input operational amplifier that operates from a single supply of 3 V to 36 V or dual supplies of ±1.5 V to ±18 V. It offers single‑supply capability with an input voltage range extending below ground, high output drive, and low noise and distortion.

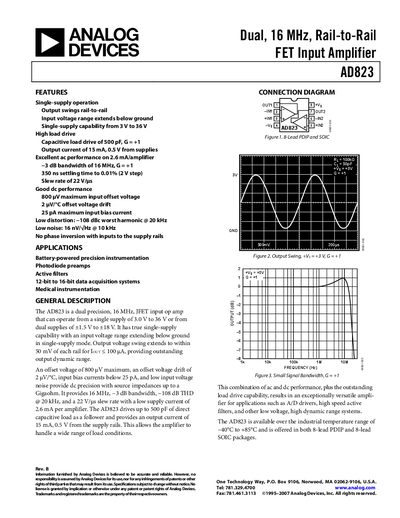

The document lists detailed electrical specifications, absolute maximum ratings, thermal resistance, ESD precautions, typical performance graphs, and an ordering guide for the 8‑lead PDIP and 8‑lead SOIC packages.
| -3 dB Bandwidth | 16 MHz |
|---|---|
| Input Voltage Noise (10 kHz) | 16 nV/√Hz |
| Input Bias Current | 25 pA |
| Output Current (source) | 15 mA |
| Supply Voltage Range | 3 V to 36 V |
| Quiescent Current (typical) | 5.2 mA |
| Capacitive Load Drive | 500 pF |
The AD823 operates from a single supply of 3 V to 36 V or dual supplies of ±1.5 V to ±18 V.
It can drive up to 500 pF of direct capacitive load as a follower.
The typical input voltage noise is 16 nV/√Hz at 10 kHz.
