The ADCMP603 is a very fast comparator fabricated on XFCB2, an Analog Devices, Inc. proprietary process. It is suitable for high precision measurement, high speed signal processing and circuit protection.
The ADCMP603 comparator from Analog Devices offers rail‑to‑rail input range, TTL/CMOS‑compatible outputs, and a single‑pin latch/hysteresis control. It operates from 2.5 V to 5.5 V supply and provides a typical propagation delay of 3.5 ns.

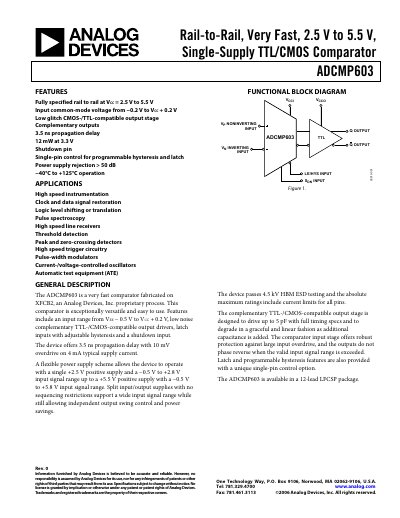

The datasheet includes detailed specifications, pin descriptions, typical performance curves, layout recommendations, and example application circuits for high‑speed instrumentation, logic level translation, and pulse‑width modulation.
| Typical Propagation Delay | 3.5 ns |
|---|---|
| Output High Voltage (VOH) | VCCO – 0.4 V |
The comparator has a typical propagation delay of 3.5 ns.
