The ADL5500 is a mean-responding power detector for use in high frequency receiver and transmitter signal chains from 100 MHz to 6 GHz. It features true rms response, excellent temperature stability, and high input dynamic range.
The ADL5500 is a mean‑responding power detector designed for high‑frequency receiver and transmitter signal chains from 100 MHz to 6 GHz. It operates from a single supply of 2.7 V to 5.5 V, offers true RMS response, excellent temperature stability and a conversion gain of 6.4 V/V rms at 900 MHz.

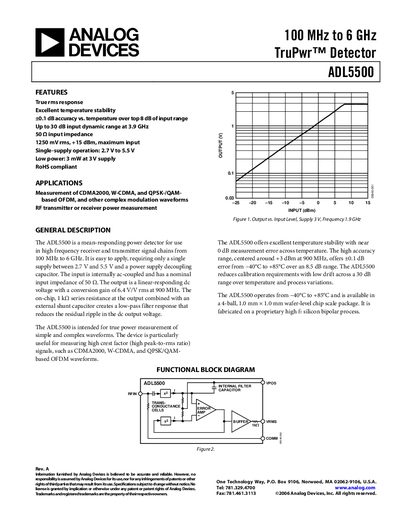

The document provides full specifications, pin‑out details, absolute maximum ratings, ESD precautions and typical performance curves. It includes tables for frequency‑dependent conversion gain, input impedance, dynamic range, power consumption and temperature sensitivity, as well as a functional block diagram and mechanical drawing of the 4‑ball WLCSP package.
| Input impedance | 50 Ω |
|---|---|
| Supply voltage range | 2.7 V – 5.5 V |
| Operating temperature range | ‑40 °C to +85 °C |
| Typical conversion gain at 900 MHz | 6.4 V/V rms |
It operates from a single supply between 2.7 V and 5.5 V.
The device has a nominal input impedance of 50 Ω.
It is rated for operation from –40 °C to +85 °C.
The typical conversion gain is 6.4 V/V rms at 900 MHz.
