A-V EZ-Extender is a product released by Analog Devices. It can be connected to the Blackfin ADSP-BF537 EZ-KIT Lite development board and provide A/V interface, which allows developers to use A/V devices to test ADSP-BF537 EZ-KIT Lite
The Blackfin A‑V EZ‑Extender is an extension board that plugs into the expansion interface of the ADSP‑BF533, ADSP‑BF537 or ADSP‑BF561 EZ‑KIT Lite evaluation system. It adds video decoder/encoder, multiple camera module connections, a flat‑panel display interface and a stereo audio codec to aid design and prototyping of Blackfin‑based applications.

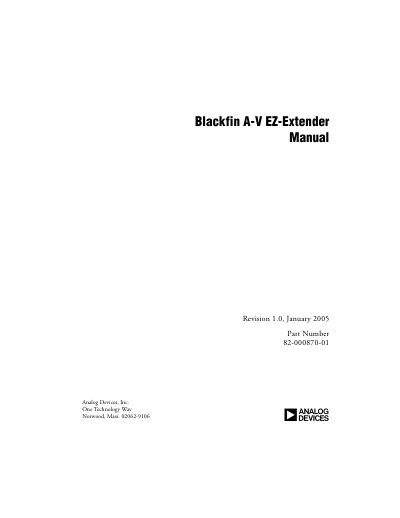

The manual provides a complete hardware reference, including system architecture, jumper settings, connector pin‑outs and detailed descriptions of the analog audio, analog video, camera and flat‑panel display interfaces. It also contains warranty information, regulatory compliance details and guidance on ESD precautions.
| Supported Blackfin processors | ADSP‑BF533, ADSP‑BF537, ADSP‑BF561 |
|---|---|
| Audio codec | DAD1836A, 96 kHz |
| Video decoder | DADV7183B |
| Audio channels | 3‑stereo input, 2‑stereo output |
The EZ‑Extender works with the ADSP‑BF533, ADSP‑BF537 and ADSP‑BF561 Blackfin processors.
The VisualDSP++ development environment is recommended for programming the board.
