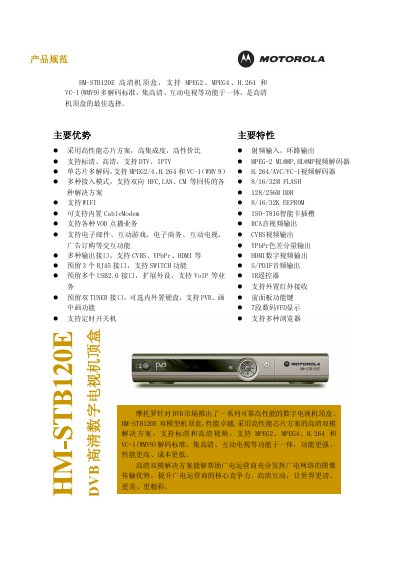

The HM-STB120E HD set-top box is a product that integrates HD, interactive TV and other functions. It supports MPEG2, MPEG4, H.264 and VC-1(WMV9) multi-decoding standards and is the best choice for HD set-top boxes.
The HM-STB120E is a high‑definition digital TV set‑top box that supports MPEG‑2, MPEG‑4, H.264 and VC‑1 (WMV9) decoding, offering both standard‑definition and HD video, IPTV, and interactive TV features. It includes multiple access modes such as bidirectional HFC, LAN, and cable modem, with built‑in Wi‑Fi and optional PVR and picture‑in‑picture functions.
The device provides a range of video and audio outputs (CVBS, YPbPr, HDMI, S/PDIF), USB 2.0 ports, RJ45 Ethernet, and an ISO‑7816 smart‑card slot. Technical specifications include a 266 MHz CPU, 128/256 MB DDR, up to 32 MB flash, and power consumption under 20 W, housed in a 350 × 245 × 38 mm chassis weighing 1.5 kg. This manual is written in Chinese.
| CPU Frequency | 266 MHz |
|---|---|
| DDR Memory | 128/256 Mbyte @ 400 MHz |
| Flash Storage | 8/16/32 MB |
| HDMI Output | Supported |
| USB 2.0 Ports | Multiple, expandable |
| Ethernet (RJ45) | 10/100 M adaptive |
| Power Consumption | < 20 W |
| Dimensions | 350 × 245 × 38 mm |
| Weight | 1.5 kg |
It supports MPEG‑2, MPEG‑4, H.264 and VC‑1 (WMV9) decoding.
The unit consumes less than 20 W of power.
It measures 350 × 245 × 38 mm and weighs about 1.5 kg.
