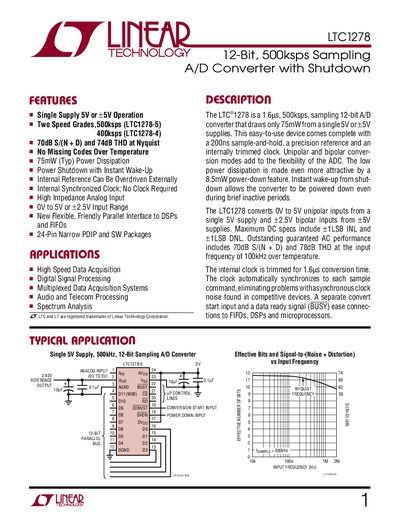

The LTC ®1278 is a 1.6µs, 500ksps, sampling 12-bit A/D converter that draws only 75mW from a single 5V or ±5V supplies. This easy-to-use device comes complete with a 200ns sample-and-hold, a precision reference and an internally trimmed clock. Unipolar and bipolar conversion modes add to the flexibility of the ADC. The low power dissipation is made even more attractive by a 8.5mW power-down feature. Instant wake-up from shut- down allows the converter to be powered down even during brief inactive periods. The LTC1278 converts 0V to 5V unipolar inputs from a single 5V supply and ±2.5V bipolar inputs from ±5V supplies. Maximum DC specs include ±1LSB INL and ±1LSB DNL. Outstanding guaranteed AC performance includes 70dB S/(N + D) and 78dB THD at the input frequency of 100kHz over temperature. The internal clock is trimmed for 1.6µs conversion time. The clock automatically synchronizes to each sample command, eliminating problems with asynchronous clock noise found in competitive devices. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.
The LTC1278 is a 12‑bit, 500 ksps (LTC1278‑5) or 400 ksps (LTC1278‑4) sampling A/D converter that operates from a single 5 V supply. It features an internal reference, synchronized clock, and a flexible parallel interface for DSPs and FIFOs. The device provides unipolar (0‑5 V) and bipolar (±2.5 V) input ranges with low offset and noise performance.
The datasheet includes detailed specifications such as resolution, power consumption, input/output voltage ranges, timing characteristics, pin functions, and package dimensions. It also provides typical performance graphs, application information, and related part numbers for designers.
| Resolution | 12 Bit |
|---|---|
| Maximum Sampling Rate | 500 ksps (LTC1278‑5) / 400 ksps (LTC1278‑4) |
| Typical Power Dissipation | 75 mW |
| Input Voltage Range | 0‑5 V (unipolar) or ±2.5 V (bipolar) |
The LTC1278 dissipates about 75 mW typical at its rated sampling speed.
Two speed grades are offered: 500 ksps for the LTC1278‑5 and 400 ksps for the LTC1278‑4.
It operates from a single 5 V supply for unipolar mode (4.95‑5.25 V) or a +5 V supply for bipolar mode (4.75‑5.25 V).
The converter provides a 12‑bit resolution with no missing codes.
