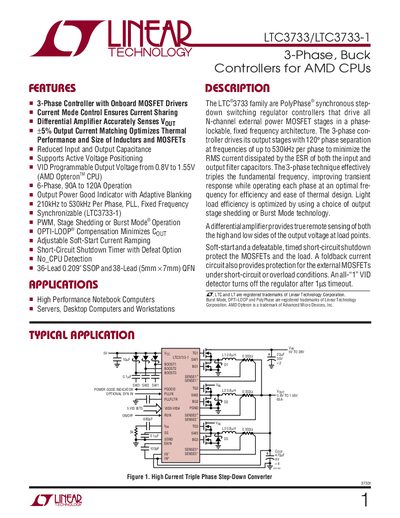

LTC3733/LTC3733-1 is a 3-phase buck controller for AMD CPUs, with features such as Burst Mode, OPTI-LOOP, and PolyPhase.
The LTC3733 family provides poly‑phase synchronous step‑down regulation for high‑performance notebook computers, servers and workstations. It drives external N‑channel MOSFETs in a fixed‑frequency, phase‑locked architecture, offering up to 530 kHz per phase and current‑mode control for accurate current sharing.
The device includes a differential amplifier for true remote sensing, programmable VID output voltage (0.8 V‑1.55 V), soft‑start, short‑circuit protection, and optional burst‑mode operation. It is offered in 36‑lead SSOP and 38‑lead QFN packages.
| VID Programming Range | 0.8 V to 1.55 V |
|---|---|
| Maximum Switching Frequency per Phase | 530 kHz |
| Number of Phases | 3‑Phase (6‑Phase up to 120 A operation) |
| Maximum Output Current | 120 A |
| Package Types | 36‑Lead SSOP, 38‑Lead QFN (7 mm × 5 mm) |
The VID programming range is 0.8 V to 1.55 V.
The controller can operate up to 530 kHz per phase.
The RUN pin (Pin 2/Pin 37) controls ON/OFF operation.
It is offered in a 36‑lead SSOP and a 38‑lead QFN (7 mm × 5 mm) package.
