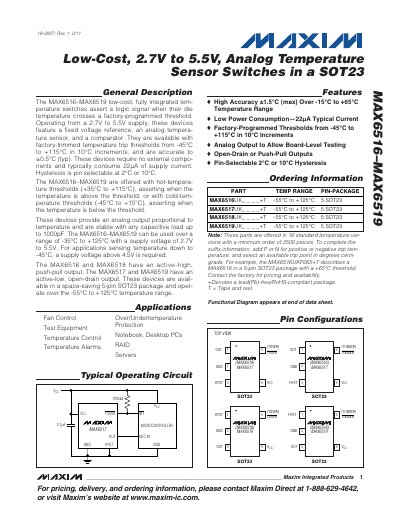

The MAX6516-MAX6519 low-cost, fully integrated tem- perature switches assert a logic signal when their die temperature crosses a factory-programmed threshold. Operating from a 2.7V to 5.5V supply, these devices feature a fixed voltage reference, an analog tempera- ture sensor, and a comparator. They are available with factory-trimmed temperature trip thresholds from -45°C to +115°C in 10°C increments, and are accurate to ±0.5°C (typ). These devices require no external compo- nents and typically consume 22µA of supply current. Hysteresis is pin selectable at 2°C or 10°C. The MAX6516–MAX6519 are offered with hot-tempera- ture thresholds (+35°C to +115°C), asserting when the temperature is above the threshold, or with cold-tem- perature thresholds (-45°C to +15°C), asserting when the temperature is below the threshold. These devices provide an analog output proportional to temperature and are stable with any capacitive load up to 1000pF. The MAX6516–MAX6519 can be used over a range of -35°C to +125°C with a supply voltage of 2.7V to 5.5V. For applications sensing temperature down to -45°C, a supply voltage above 4.5V is required. The MAX6516 and MAX6518 have an active-high, push-pull output. The MAX6517 and MAX6519 have an active-low, open-drain output. These devices are avail- able in a space-saving 5-pin SOT23 package and oper- ate over the -55°C to +125°C temperature range.
The MAX6516‑MAX6519 family are low‑cost, fully integrated temperature switches that assert a logic signal when the die temperature crosses a factory‑programmed threshold. They operate from a 2.7 V to 5.5 V supply, consume about 22 µA, and are available in a 5‑pin SOT23 package.
Key features include selectable hot or cold temperature thresholds, pin‑selectable hysteresis of 2 °C or 10 °C, an analog output proportional to temperature, and compatibility with a wide range of applications such as fan control, over‑temperature alarms, and board‑level testing.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Typical Supply Current | 22 µA |
| Operating Temperature Range | -55 °C to +125 °C |
| Hysteresis Options | 2 °C or 10 °C (pin selectable) |
| Package Type | 5‑pin SOT23 |
A supply voltage above 4.5 V is required for applications sensing temperature down to -45 °C.
Connect the HYST pin to VCC for 2 °C hysteresis or to GND for 10 °C hysteresis.
