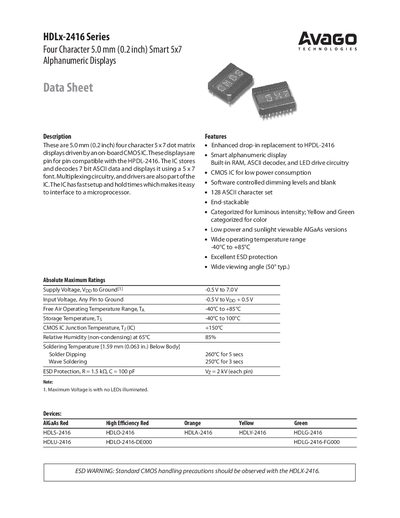

HDLx-2416 Series is a four-character 5.0mm (0.2 inch) smart 5x7 alphanumeric display driven by an on-board CMOS IC. These displays are pin for pin compatible with the HPDL-2416. The IC stores and decodes 7 bit ASCII data and displays it using a 5 x 7 font. Multiplexing circuitry, and drivers are also part of the IC. The IC has fast setup and hold times which makes it easy to interface to a microprocessor.
The HDLX-2416 series are 5.0 mm (0.2 in) four‑character 5×7 dot‑matrix alphanumeric displays driven by an on‑board CMOS IC. They are pin‑compatible with the HPDL‑2416 and include built‑in RAM, an ASCII decoder, LED drive circuitry, and software‑controlled dimming.
The device operates from –40 °C to +85 °C, supports a supply voltage of 5.0 V (0.5 V to 7.0 V absolute max), and offers up to eight brightness levels, external dimming, and individual digit blanking. It is available in several color variants (red, orange, yellow, green) and can be stacked to form larger arrays.
| Supply Voltage (Vpp) | 5.0 V typical (0.5 V to 7.0 V max) |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| ESD Protection | 2 kV per pin |
| Typical Luminous Intensity (HDLS‑2416) | 12.7 mcd per digit |
| Peak Wavelength (HDLS‑2416) | 645 nm |
| Input Current (typical) | 10 pA |
| Brightness Levels | 8 levels (0‑7) |
The HDLX-2416 provides eight internal brightness levels that can be controlled via the control register.
Each pin is protected against electro‑static discharge up to 2 kV.
Yes, the 18‑pin DIP package is end‑stackable both horizontally and vertically to form arrays of any size.
