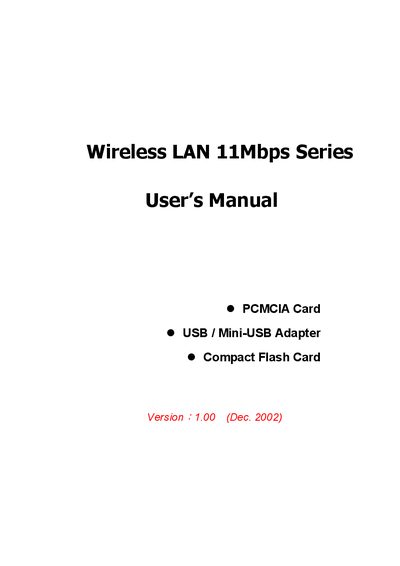

This manual introduces the features and characteristics of Wireless LAN 11Mbps Series PCMCIA Card, USB / Mini-USB Adapter, Compact Flash Card products as well as installation methods
The 11Mbps Series Wireless LAN card operates in the ISM band using IEEE 802.11b DSSS transmission. The manual provides an overview of the product, package contents, and system requirements for PCMCIA, USB, Mini‑USB, and CF form factors.
Detailed instructions guide users through quick installation, driver setup under various Windows versions, use of the Configuration & Monitor Utility, and include full RF and power specifications as well as a troubleshooting section for common issues.
| Frequency range | 2.4~2.4835 GHz |
|---|---|
| Channel bandwidth | 22 MHz |
| Tx Output Power | +16 dBm (typ.) at ACPR, DSSS |
| Rx Sensitivity @ 11 Mbps | -84.0 dBm, 8% PER |
| Modulation | Direct sequence spread spectrum |
| Supply Voltage | 3.3 V |
| Continuous Transmit Mode current | 435 mA (max) |
| Continuous Receive Mode current | 284 mA (max) |
| Power Save Mode current | 21 mA (max) |
| Antenna Gain | 1.0 dBi (typ.) |
The card requires Windows 98/2000/XP or Windows NT 4.0 with Service Pack 4 or later, a desktop or notebook PC with a CD‑ROM drive, a PCMCIA or PCI‑to‑PCMCIA controller (3.3 V support), USB 1.1, and a CF Card slot for Pocket PC.
Insert the driver CD, click the icon for your operating system, and follow the InstallShield wizard by pressing “Next”, selecting the desired components, and completing the installation.
The CF Card operates from 2.4 GHz to 2.4835 GHz.
The card draws up to 435 mA in continuous transmit mode.
