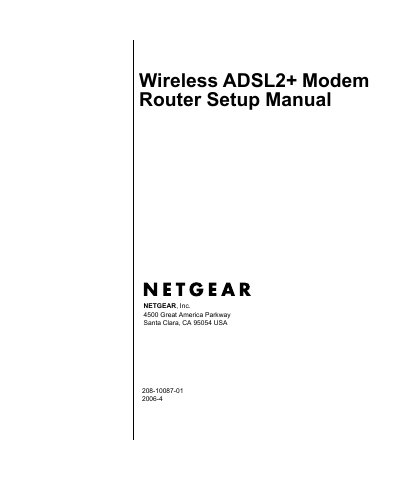

This manual introduces the connection, setup methods and troubleshooting of NETGEAR Wireless ADSL2+ Modem Router
This manual guides users through connecting the Netgear wireless ADSL2+ modem router to the Internet, including hardware overview, required items, and two setup methods – the Smart Wizard and manual configuration. It also covers basic wireless security, DHCP settings, and how to use ADSL microfilters.
Additional sections cover troubleshooting common issues such as LED status, PPPoE/PPPoA problems, and network connectivity, followed by detailed technical specifications and reference links for further information.
| Network Protocols | TCP/IP, RIP‑1, RIP‑2, DHCP, PPPoE/PPPoA, RFC 1483, RFC 1577 |
|---|---|
| Power Adapter Output | 12 V AC @ 1.0 A (30 W max) |
| Physical Dimensions | 8.9" x 6.8" x 1.5" (225.5 mm x 172 mm x 39 mm) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| LAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| WAN Interface | ADSL, Dual RJ‑11 (ITU Annex A or B) |
| Default LAN IP | 192.168.0.1 |
| Wireless SSID | NETGEAR |
| Maximum Wireless Speed | Up to 270 Mbps (dynamic 20/40 MHz) |
Press and hold the reset button on the front of the device for three seconds; the router will return to its factory configuration.
The router uses a 12 V AC adapter rated at 1.0 A, with a maximum power consumption of 30 W.
