The INA157 is a high-gain, low-drift, high common-mode rejection, high input bandwidth difference amplifier.
The INA157 is a high‑slew‑rate difference amplifier offered in an SO‑8 surface‑mount package. It features low offset voltage (±500 µV max), low offset drift (2 µV/°C), low gain error (±0.05 %), a 3 MHz bandwidth and a 14 V/µs slew rate. The device operates from a wide supply range of +4 V to +18 V and draws only 2.4 mA quiescent current.

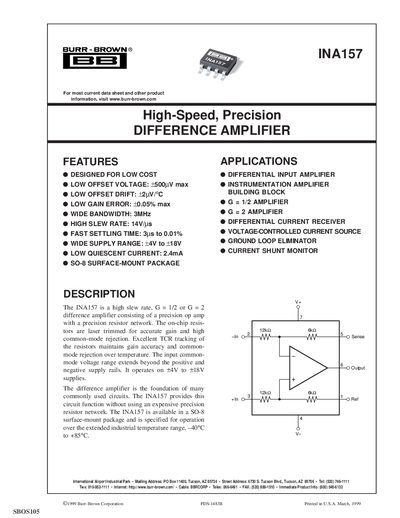

Designed for general‑purpose applications such as instrumentation amplifiers, differential receivers and current shunt monitors, the INA157 provides accurate gain (G = ½ or G = 2) with laser‑trimmed on‑chip resistors for high common‑mode rejection. Typical performance curves, pin configuration, and package information are included in the data sheet.
| Low Offset Voltage | ±500 µV max |
|---|---|
| Low Offset Drift | 2 µV/°C |
| Low Gain Error | ±0.05 % max |
| Bandwidth | 3 MHz |
| Slew Rate | 14 V/µs |
| Quiescent Current | 2.4 mA |
| Supply Voltage Range | +4 V to +18 V |
| Operating Temperature Range | 40 °C to +85 °C |
| Package Type | SO‑8 surface‑mount |
| Differential Input Impedance | 24 kΩ |
The INA157 operates from a supply voltage of +4 V to +18 V.
The device draws a low quiescent current of about 2.4 mA.
The INA157 has a small‑signal bandwidth of 3 MHz.
The INA157 is offered in an SO‑8 surface‑mount package.
