The SP6132H is a synchronous step-down switching regulator controller optimized for high efficiency. It has a wide input and output voltage range, strong output capability, high integration, and comprehensive protection features. It is suitable for applications with dual power supplies, 12V step-down, and 5V for controller power supply.
The SP6132H is a high‑voltage, 300 kHz synchronous PWM controller designed for step‑down conversion with input voltages from 3 V to 28 V. It drives a pair of external NFETs and includes integrated UVLO, thermal shutdown, and short‑circuit protection.

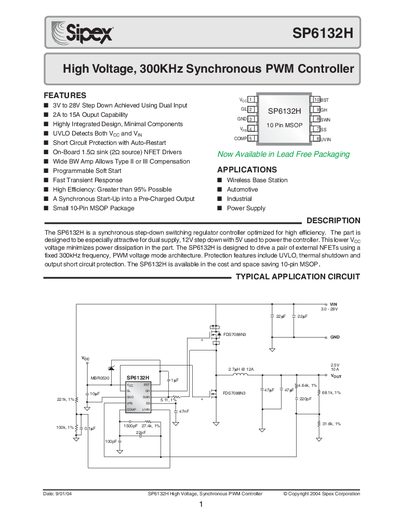

The document lists absolute maximum ratings, detailed electrical specifications, pin functions, functional diagrams, and application guidelines such as inductor and output capacitor selection, as well as ordering information for the 10‑pin MSOP package.
| Input voltage range | 3 V to 28 V |
|---|---|
| Output current capability | 2 A to 15 A |
| Switching frequency | 300 kHz (fixed) |
| Quiescent supply current (Voc) | Typical 3 mA |
| Thermal shutdown temperature | 145 °C |
| Package type | 10‑pin MSOP |
The controller operates with an input voltage from 3 V up to 28 V.
It uses a fixed switching frequency of 300 kHz.
It is supplied in a 10‑pin MSOP package.
