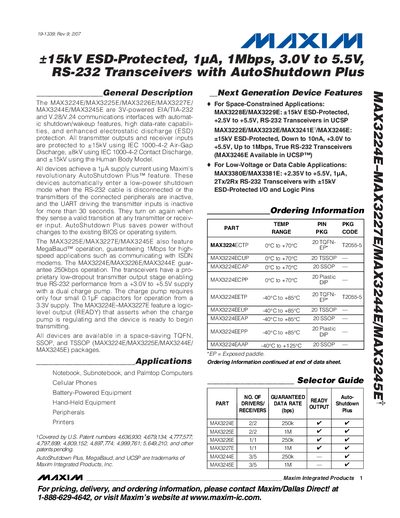

This data sheet describes the MAX3224E/MAX3225E/MAX3226E/MAX3227E/ MAX3244E/MAX3245E. It contains information on the features, applications, pinout, electrical parameters, and usage of these devices.
The MAX3224E‑MAX3227E and MAX3244E‑MAX3245E families are 3 V‑powered RS‑232 transceivers with +15 kV ESD protection, AutoShutdown Plus low‑power shutdown, and optional MegaBaud operation. They provide true RS‑232 voltage levels from a 3.0 V to 5.5 V supply using a dual charge‑pump that requires only four 0.1 pF capacitors.
The devices are offered in space‑saving TQFN, SSOP, and TSSOP packages. Detailed pin descriptions, electrical characteristics, timing parameters, and absolute maximum ratings are provided, along with ordering information and package dimensions.
| Supply Voltage Range | 3.0 V to 5.5 V |
|---|---|
| ESD Protection (Air Discharge) | +15 kV |
| ESD Protection (Contact Discharge) | +8 kV |
| Package Types | TQFN, SSOP, TSSOP |
Only four small 0.1 pF capacitors are needed for the dual charge‑pump operation.
