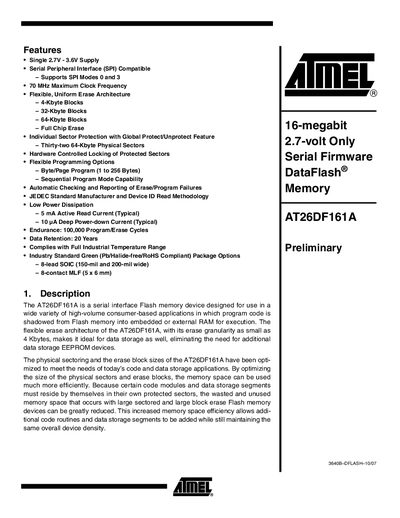

The AT26DF161A is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer-based applications. It has a flexible erase architecture with a minimum erase granularity of 4 Kbytes, making it ideal for data storage. The physical sectoring and the erase block size make it a good choice for a variety of applications.
The AT26DF161A DataFlash provides a 16‑megabit serial interface Flash memory designed for high‑volume consumer and data‑storage applications. It supports SPI modes 0 and 3, operates from a single 2.7 V‑3.6 V supply, and offers low power consumption (5 mA active read, 10 pA deep power‑down).
The device features a flexible erase architecture with 4‑KB, 32‑KB and 64‑KB block sizes, 32 physical sectors of 64 KB each, and individual sector protection with global protect/unprotect commands. It is available in 8‑lead SOIC and 8‑contact MLF packages.
| Maximum Clock Frequency | 70 MHz |
|---|---|
| Active Read Current (typical) | 5 mA |
| Deep Power‑down Current (typical) | 10 pA |
| Endurance | 100 000 Program/Erase Cycles |
| Data Retention | 20 Years |
| Erase Block Sizes | 4 KB, 32 KB, 64 KB |
The memory is rated for 100 000 program/erase cycles.
The maximum clock frequency is 70 MHz.
