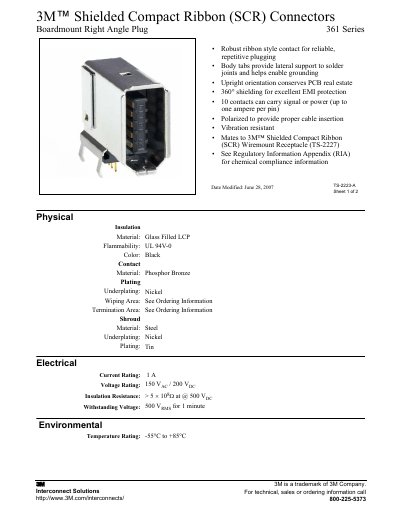

This document describes the physical, electrical, and environmental characteristics of the 3M™ Shielded Compact Ribbon (SCR) Connectors Boardmount Right Angle Plug 361 Series. The plug features reliable repetitive plugging, lateral support for solder joints and grounding, space-saving PCB design, 360° shielding for EMI protection, ability to carry signal or power, polarization for proper cable insertion, vibration resistance, and compatibility with 3M™ Shielded Compact Ribbon (SCR) Wiremount Receptacle (TS-2227).
The 3M 361 Series Shielded Compact Ribbon (SCR) Connectors are board‑mount right‑angle plugs designed for reliable, repetitive plugging with 360° EMI shielding. The connector features a glass‑filled LCP insulator, nickel‑plated phosphor‑bronze contacts, and a steel shroud, providing robust mechanical support and vibration resistance.
The datasheet lists electrical ratings (1 A per pin, 150 VAC/200 VDC), temperature range (‑55 °C to +85 °C), and compliance details, including UL 94V‑0 flammability and RoHS exemptions for certain substances. Ordering information and footprint dimensions are also provided. This manual is written in Chinese.
| Insulation Material | Glass Filled LCP |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Black |
| Contact Material | Phosphor Bronze |
| Plating | Nickel |
| Current Rating per Pin | 1 A |
| Voltage Rating | 150 VAC / 200 VDC |
| Insulation Resistance | > 5 × 10⁸ Ω at 500 VDC |
| Withstanding Voltage | 500 VRMS for 1 minute |
| Temperature Rating | -55 °C to +85 °C |
| Number of Contacts | 10 |
Each pin is rated for a maximum current of 1 A.
The connector is rated for operation from –55 °C to +85 °C.
Yes, the product is RoHS compliant, with specific exemptions noted for lead and decaBDE in certain areas.
The connector provides 10 contacts.
