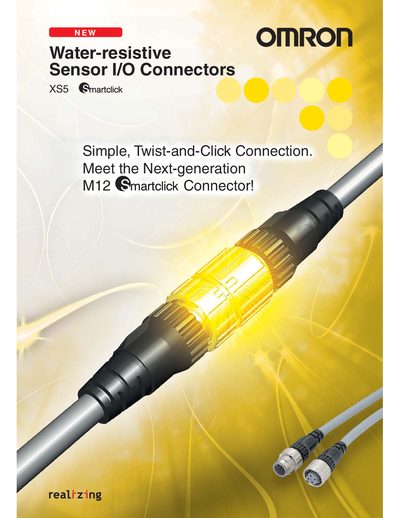

The XS5 water-resistant sensor I/O connector is a new generation of M12 connector that features a simple twist-and-click connection. It is fully compatible with conventional screw-type M12 connectors and solves the problems of previous screw-type connectors. The Smartclick XS5 requires only a simple twist to connect, making it an ideal next-generation M12 connector. It is also easy to introduce to existing facilities because it takes only 1/4 the time of ordinary wiring processes, and it is compatible with conventional, screw-type connectors.
The XS5 Smartclick connectors are water‑resistive (IP67) sensor I/O connectors that use a twist‑and‑click lock mechanism compatible with standard M12 screw‑type connectors. They are available in several variants (XS5F, XS5H, XS5W) and support a rated current of 4 A at 250 VDC.
The handbook includes technical specifications, dimensional drawings, wiring diagrams for 4‑core cables, ordering tables for standard, vibration‑proof and oil‑resistant cables, safety precautions, and step‑by‑step installation instructions for connecting plugs, sockets, and other M12 connectors.
| Rated current | 4 A |
|---|---|
| Rated voltage | 250 VDC |
| Contact resistance | 40 mΩ max |
| Insulation resistance | 1 000 MΩ min (at 500 VDC) |
| Degree of protection | IP67 (IEC60529) |
| Lock strength (pulling) | 100 N / 15 s |
| Operating temperature range | ‑25 °C to 70 °C |
They have an IP67 protection rating.
No, tools must not be used; the connectors should be joined by hand only.
