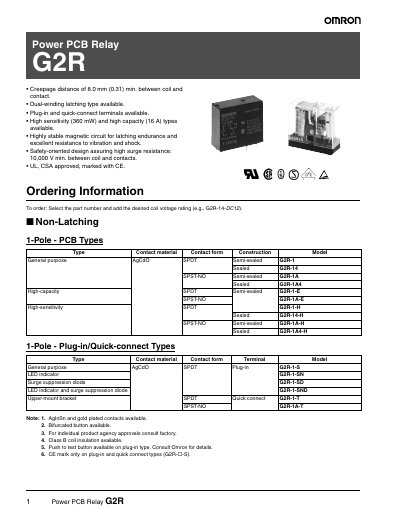

The G2R Power PCB Relay has a 8.0 mm (0.31) minimum creepage distance and offers dual-winding latching type, plug-in and quick-connect terminals. High sensitivity (360 mW) and high capacity (16 A) types are also available. This relay uses a highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock. Safety-oriented design assures high surge resistance: 10,000 V minimum between coil and contacts. The relay is UL, CSA approved, and marked with CE.
This datasheet describes the Omron G2R series of Power PCB relays, covering both non‑latching and latching types. It lists available contact materials, forms, terminal options, and ordering information for each model variant.
Technical details include coil ratings, maximum switching capacity, electrical service life, mechanical durability, and environmental limits. Safety certifications such as UL, CSA and CE are also documented, along with dimensional drawings and mounting instructions.
| Creepage distance (coil‑to‑contact) | 8.0 mm (0.31 in) min. |
|---|---|
| Contact material | AgCdO |
| Rated load (single‑pole, non‑latching) | 10 A at 250 VAC |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
| Service life (non‑latching) | 10,000,000 operations min. (at 18,000 ops/hr) |
| Safety approvals | UL, CSA, CE |
The minimum creepage distance is 8.0 mm (0.31 in).
The G2R relay is UL and CSA approved and is CE marked.
The G2R‑1 model is rated for 10 A at 250 VAC (general purpose).
It is rated for at least 10 million operations at 18 000 operations per hour.
