G7J high-capacity, high-dielectric-strength, multi-pole relay used like a contactor. Miniature hinge for maximum switching power for motor loads as well as resistive and inductive loads. No contact chattering for momentary voltage drops up to 50% of rated voltage. Withstanding more than 4 kV between contacts that are different in polarity and between the coil and contacts. Flame-resistant materials (UL94V-0-qualifying) used for all insulation material. Standard models approved by UL and CSA.
The G7J series is a high‑dielectric‑strength, multi‑pole power relay designed for motor, resistive and inductive loads. It offers a miniature hinge for maximum switching power, UL and CSA approvals, and a range of terminal options (PCB, screw, quick‑connect). The relay can withstand more than 4 kV between contacts of opposite polarity and between coil and contacts.

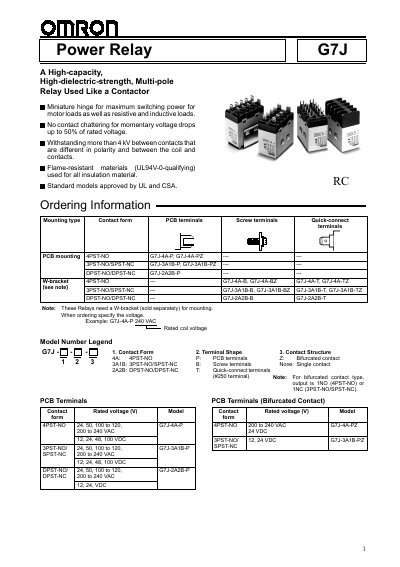

The document provides detailed specifications, contact ratings, mechanical dimensions, approved standards, and installation guidelines, including mounting recommendations and wiring precautions for both AC and DC coil versions.
| Rated voltage (VAC) | 24, 50, 100‑120, 200‑240 VAC |
|---|---|
| Maximum switching voltage | 250 VAC |
| Contact rating (NO) current | 25 A at 220 VAC |
| Insulation resistance | ≥1 000 MΩ (at 500 VDC) |
| Weight (screw terminal version) | ≈165 g |
The G7J relay can switch up to 250 VAC.
NO contacts are rated for 25 A at 220 VAC (30 VDC) and NC contacts for 8 A at 220 VAC (30 VDC).
