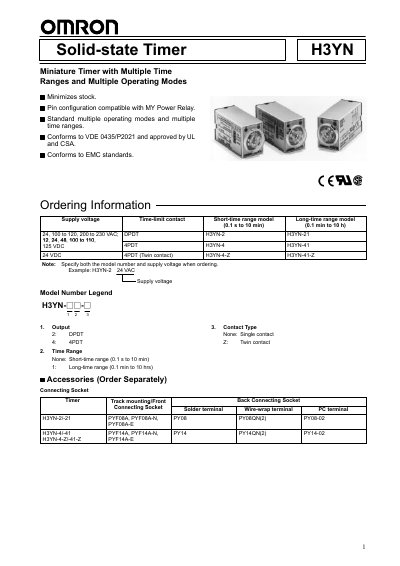

H3YN solid-state timer with multiple time ranges and multiple operating modes minimizes stock. Pin configuration compatible with MY Power Relay. Standard multiple operating modes and multiple time ranges. Conforms to VDE 0435/P2021 and approved by UL and CSA. Conforms to EMC standards.
The H3YN series are compact solid‑state timers that offer short‑ and long‑time ranges and several operating modes such as ON‑delay, interval and flicker. They are designed for use with MY power relays and meet UL, CSA, VDE and EMC standards.
This manual includes detailed specifications, wiring diagrams, DIP‑switch settings, mounting dimensions, accessory information, installation steps, and extensive safety precautions for reliable operation in industrial control panels.
| Control output rating | DPDT 5 A @ 250 VAC, 4PDT 3 A @ 250 VAC |
|---|---|
| Power consumption (Relay ON) | 1.5 VA (1.1 W) at 24 VAC, 60 Hz |
| Insulation resistance | ≥100 MΩ at 500 VDC |
| Operating temperature range | –10 °C to 50 °C |
| Weight | ≈50 g |
The top two DIP‑switch pins are used to choose the desired time range (e.g., 0.1 s‑10 min or 0.1 min‑10 h).
