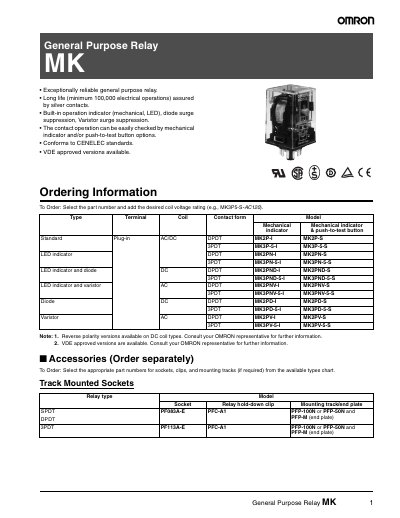

The General Purpose Relay MK series from Omron offers reliable switching with silver contacts, built‑in mechanical or LED indicators, and surge suppression. Various coil voltages and contact forms are available, and the relays conform to CENELEC standards with VDE‑approved versions.
The document lists detailed electrical characteristics, mechanical dimensions, mounting options, and approved safety certifications (UL, CSA, VDE, etc.). It also includes ordering part numbers, accessory options, and terms of sale for distributors and end users.
| Contact resistance | 50 mΩ max. |
|---|---|
| Operate time (AC) | 20 ms max. |
| Release time | 20 ms max. |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Rated load | 10 A at 250 VAC |
The relay is guaranteed a minimum of 100,000 electrical operations.
The relays are approved by UL, CSA, VDE, SEV, DEMKO, and TUV, with specific versions for each standard.
The relay can operate from –10 °C to 40 °C (14 °F to 104 °F).
Contact operation can be checked using the mechanical indicator or the push‑to‑test button.
