Temflex 1500 Vinyl Electrical Tape is a high quality PVC insulating tape with good resistance to abrasion, moisture, alkalis, acid and varying weather conditions (including sunlight).
Temflex 1500 is a general‑purpose PVC insulating tape offered by 3M in a wide range of colors for indoor and outdoor electrical insulation, wire harnessing, and cable repairs. It is classified under IEC 60454‑3‑1‑5/F‑PVCP/90 and carries VDE Marks Licence.

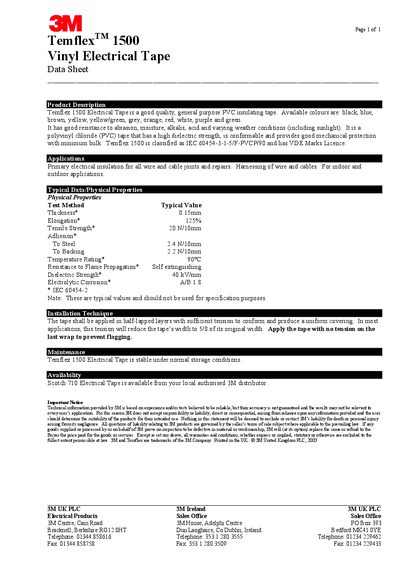

The sheet lists typical physical properties such as thickness, dielectric strength, and temperature rating, and gives installation advice – half‑lapped layers with tension, reducing the tape width to about 5/8 of its original size, and a final wrap applied without tension to avoid flagging.
| Thickness | 0.15 mm |
|---|---|
| Elongation | 125 % |
| Tensile Strength | 20 N/10 mm |
| Adhesion to Steel | 2.4 N/10 mm |
| Adhesion to Backing | 2.2 N/10 mm |
| Temperature Rating | 90 °C |
| Resistance to Flame Propagation | Self extinguishing |
| Dielectric Strength | 40 kV/mm |
| Electrolytic Corrosion | A/B 1.8 |
The tape is offered in black, blue, brown, yellow, yellow/green, grey, orange, red, white, purple and green.
The tape is rated for use up to 90 °C.
