The 3M™ Mini D Ribbon (MDR) Connectors .050″ Boardmount Through-Hole Vertical Receptacle - Shielded 102 Series is made of glass filled polyester (PBT) or glass filled polyester (PCT) with UL 94V-0 flammability rating. It can be installed through PCB. The interface is fixed by metal housing and screw lock for reliable PCB retention. It also has wiping contact head for reliable repetitive plugging. The interface provides 14, 20, 26, 36, 40, 50, 68, 80 and 100 contacts and has IEEE 1284C interface.
The 3M 102 Series Mini D Ribbon (MDR) connectors are .050" board‑mount, through‑hole vertical receptacles with a shielded design. They feature a rugged die‑cast metal case, screw lockdown for PCB retention, and an IEEE 1284C 36‑contact interface. Various contact counts are offered, ranging from 14 to 100 pins.

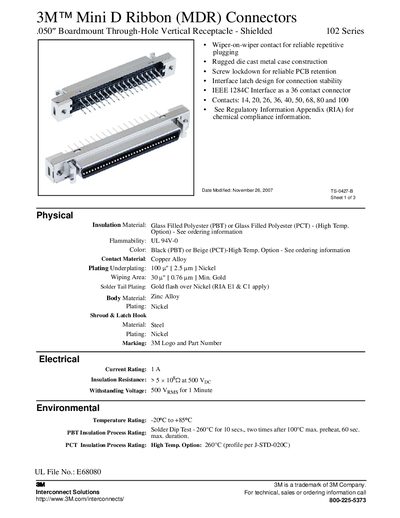

The datasheet provides physical, electrical and environmental specifications, contact dimensions, ordering information and regulatory compliance details, including RoHS status and material options such as glass‑filled polyester (PBT or PCT) and plated contacts.
| Operating Temperature Range | -20 °C to +85 °C |
|---|---|
| Body Material | Glass Filled Polyester (PBT) or Glass Filled Polyester (PCT) |
| Contact Material | Copper alloy, 100 µm Nickel, 30 µm Gold |
| Plating | Gold flash over Nickel |
| Contact Options | 14, 20, 26, 36, 40, 50, 68, 80, 100 pins |
| RoHS Compliance | Compliant with EU RoHS Directive 2002/95/EC |
It can operate from –20 °C up to +85 °C.
Yes, the product complies with the EU RoHS Directive 2002/95/EC.
Available contact counts are 14, 20, 26, 36, 40, 50, 68, 80 and 100 pins.
