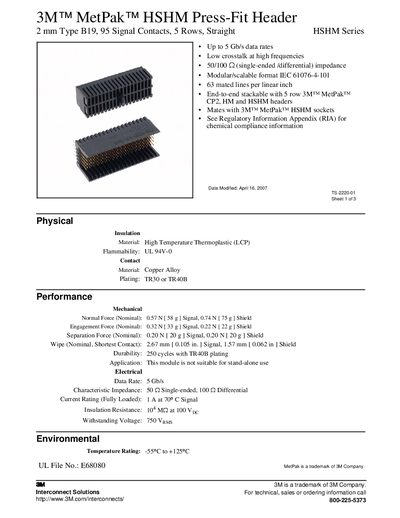

3M™ MetPak™ HSHM Press-Fit Header 2 mm Type B19, 95 Signal Contacts, 5 Rows, Straight HSHM Series is a high performance connector that supports 5 Gb/s data rate and features low crosstalk, 50/100 Ω impedance.
The MetPak HSHM Press-Fit Header is a 2 mm Type B19 connector with 95 signal contacts arranged in five rows. It is designed for high‑speed applications, offering up to 5 Gb/s data rates and low crosstalk.
Key specifications include 50/100 Ω single‑ended/differential impedance, 1 A current rating at 70 °C, and an operating temperature range of –55 °C to +125 °C. The document also contains ordering information, PCB hole‑plating tables, and RoHS compliance details.
| Data Rate | Up to 5 Gb/s |
|---|---|
| Impedance | 50 Ω single‑ended / 100 Ω differential |
| Current Rating | 1 A at 70 °C |
| Withstanding Voltage | 750 V |
| Temperature Rating | -55 °C to +125 °C |
| Signal Contacts | 95 contacts, 5 rows |
| Pin Pitch | 2 mm (Type B19) |
It supports up to 5 Gb/s data rates.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC, with specific exemptions noted.
The header operates from –55 °C to +125 °C.
