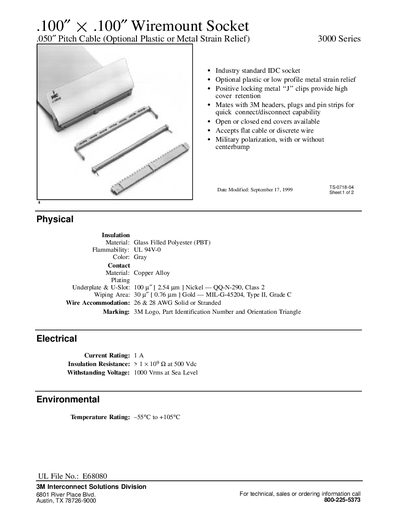

This datasheet describes the 3M .100" x .100" Wiremount Socket from the 3000 Series. It lists physical characteristics such as glass‑filled polyester (PBT) insulation, copper‑alloy contacts with nickel and gold plating, and optional plastic or low‑profile metal strain‑relief options. The socket is compatible with 3M headers, plugs, and pin strips for quick connect/disconnect.
Electrical specifications include a 1 A current rating, insulation resistance greater than 1 × 10⁹ Ω at 500 Vdc, and a withstanding voltage of 1000 Vrms at sea level. The device operates from –55 °C to +105 °C and meets UL 94V‑0 flammability. Ordering information, contact dimensions, and detailed mechanical tolerances are provided in the tables.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | –55 °C to +105 °C |
| UL File No. | E68080 |
The socket is rated for a continuous current of 1 A.
It can operate from –55 °C up to +105 °C.
Optional plastic or low‑profile metal strain‑relief can be used, with a high‑profile cover for thicker cables.
