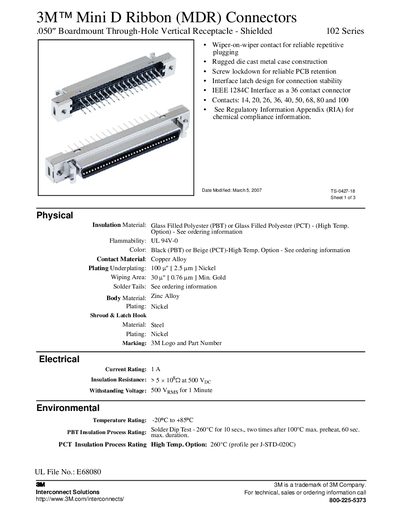

3M™ Mini D Ribbon (MDR) Connectors .050″ Boardmount Through-Hole Vertical Receptacle - Shielded 102 Series are connectors produced by 3M company. The features of the product are that the contact material is copper alloy, which has reliable repetitive plugging performance, a rugged metal case, reliable PCB fixation, stable connection stability, IEEE 1284C interface, and the option of 14, 20, 26, 36, 40, 50, 68, 80 and 100 contacts.
The 102 Series Mini D Ribbon (MDR) connector is a .050" board‑mount, through‑hole, vertical receptacle with a shielded design. It features a rugged die‑cast metal case, screw lockdown for PCB retention, and an IEEE 1284C 36‑contact interface. Contact options range from 14 to 100 pins, with various plating options such as tin‑lead over nickel or gold flash over nickel.
Technical data include a 1 A current rating, insulation resistance greater than 5 × 10¹² Ω at 500 VDC, and a withstanding voltage of 500 V for one minute. The connector operates from –20 °C to +85 °C and complies with EU and China RoHS directives, with specific exemptions noted in the regulatory appendix.
| Temperature Rating | -20 °C to +85 °C |
|---|---|
| Body Material | Rugged die‑cast metal |
It can operate from –20 °C to +85 °C.
Yes, it complies with EU RoHS 2005/95/EC, with specific exemptions noted in the regulatory appendix.
The case is made of rugged die‑cast metal.
