The document describes the features and characteristics of jumper wires, including 5 different lengths, 22AWG solid tinned copper, PVC insulation, and 4 color-coded and 1 non-colored versions.

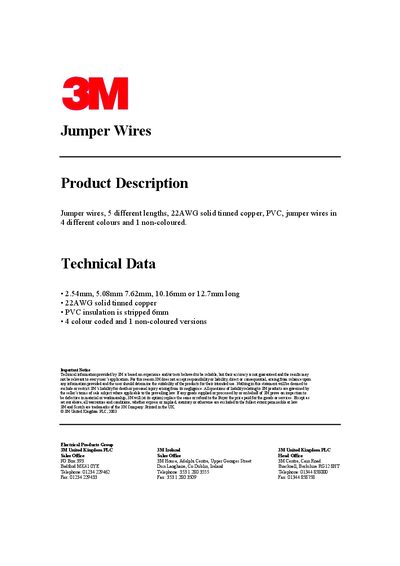

The handbook describes 3M jumper wires that are offered in five different lengths and four colour‑coded plus one non‑coloured version. The wires are 22 AWG solid tinned copper with PVC insulation.
Technical data include the exact length options, the stripped insulation length, and a disclaimer that the information is based on experience and may not be suitable for every application.
| Available lengths | 2.54 mm, 5.08 mm, 7.62 mm, 10.16 mm or 12.7 mm |
|---|---|
| Wire gauge | 22 AWG solid tinned copper |
| Insulation stripped length | 6 mm |
| Colour versions | 4 colour‑coded and 1 non‑coloured |
The jumper wires are offered in lengths of 2.54 mm, 5.08 mm, 7.62 mm, 10.16 mm or 12.7 mm.
They are 22 AWG solid tinned copper wires.
There are four colour‑coded versions and one non‑coloured version.
The PVC insulation is stripped to a length of 6 mm.
