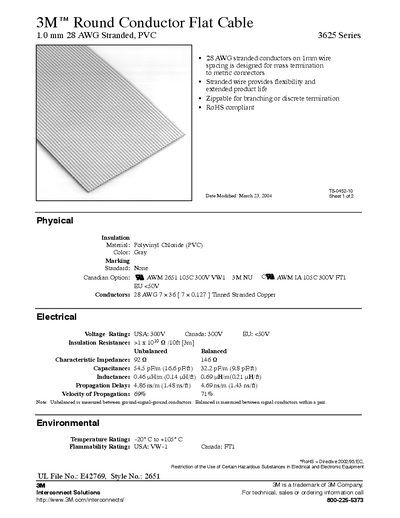

3M Round Conductor Flat Cable 1.0 mm 28 AWG Stranded, PVC 3625 Series TS-0452-10 is a round conductor flat cable produced by 3M company. The wire diameter is 1.0 mm, AWG is 28, the conductors are seven strands of 36, and the rated voltage is 300V. The rated temperature is -20°C to +105°C.
The 3M 3625 Series round conductor flat cable is a 1.0 mm, 28 AWG stranded PVC cable designed for mass termination to metric connectors. It offers flexibility, extended product life, and RoHS compliance.
The document provides detailed physical, electrical and environmental specifications, part numbers, dimensions, and ordering instructions, along with warranty and liability notices.
| Conductor size | 28 AWG stranded, 1 mm wire spacing |
|---|---|
| Voltage rating | USA/Canada 300 V, EU <50 V |
| Capacitance | 54.5 pF/m (16.6 pF/ft) |
The cable is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
Yes, the cable complies with the RoHS Directive 2002/95/EC.
