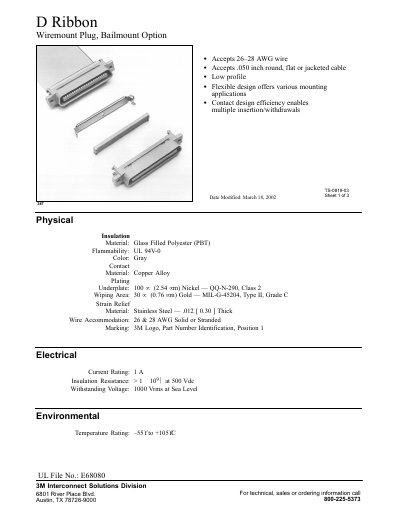

This document describes the features and characteristics of 3M's D Ribbon Wiremount Plug, including acceptance of wire gauges, low profile, flexible mounting applications, contact design efficiency, physical insulation material, current and temperature ratings, etc.
The D Ribbon Wiremount Plug, Bailmount Option 387 is a low‑profile, flexible connector that accepts 26–28 AWG solid or stranded wire and .050 in round, flat, or jacketed cable. It features a copper‑alloy contact with a 100 µ″ nickel underplate and a 30 µ″ gold wiping area, and includes a stainless‑steel strain‑relief flange.
The connector is rated for 1 A electrical current, insulation resistance greater than 1 × 10⁹ Ω at 500 Vdc, and can withstand 1000 Vrms at sea level. It operates from –55 °C to +105 °C, meets UL 94V‑0 flammability, and is available in multiple mounting configurations with detailed contact and panel dimensions for front or rear installation.
| Wire gauge | 26–28 AWG |
|---|---|
| Current rating | 1 A |
| Insulation resistance | > 1 × 10⁹ Ω at 500 Vdc |
| Withstanding voltage | 1000 Vrms at sea level |
| Operating temperature range | –55 °C to +105 °C |
| Contact plating | Copper alloy with 100 µ″ nickel underplate |
| Gold wiping area | 30 µ″ |
| Strain relief material | Stainless steel |
| Flammability rating | UL 94V‑0 |
| Color | Gray |
It accepts 26–28 AWG solid or stranded wire.
The connector is rated for 1 A of electrical current.
It can operate from –55 °C up to +105 °C.
The insulation resistance exceeds 1 × 10⁹ Ω at 500 Vdc.
