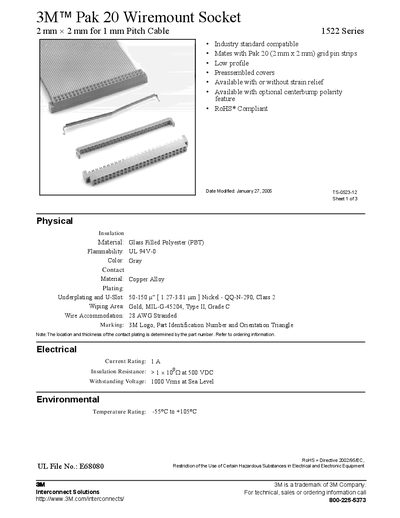

3M™ Pak 20 Wiremount Socket 2 mm × 2 mm for 1 mm Pitch Cable 1522 Series is a connector produced by 3M company. Its main features are industry standard compatibility, low connection height, pre-assembled cover, optional strain relief, optional center bump polarity feature and compliance with RoHS* standard.
The Pak 20 Wiremount Socket (2 mm × 2 mm) is designed for 1 mm pitch cable assemblies and is compatible with the 1522 Series. It features a low‑profile, pre‑assembled cover and optional strain‑relief or center‑bump polarity options.
Key specifications include a 1 A current rating, 1000 Vrms withstanding voltage, operating temperature from –55 °C to +105 °C, and RoHS compliance. The socket uses glass‑filled polyester (PBT) insulation, copper‑alloy contacts with nickel and gold plating, and accommodates 28 AWG stranded wire.
| Pitch | 2 mm × 2 mm (compatible with 1 mm pitch cable) |
|---|---|
| Insulation Material | Glass Filled Polyester (PBT) |
| Flammability Rating | UL 94V‑0 |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel - QQ‑N‑290, Class 2; Gold, MIL‑G‑45204, Type II, Grade C |
| Wire Accommodation | 28 AWG stranded |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at sea level |
| Temperature Rating | -55 °C to +105 °C |
| RoHS Compliance | Yes |
The socket is rated for a maximum current of 1 A.
Yes, the product is RoHS compliant.
It can operate from –55 °C up to +105 °C.
The insulation material is glass‑filled polyester (PBT).
