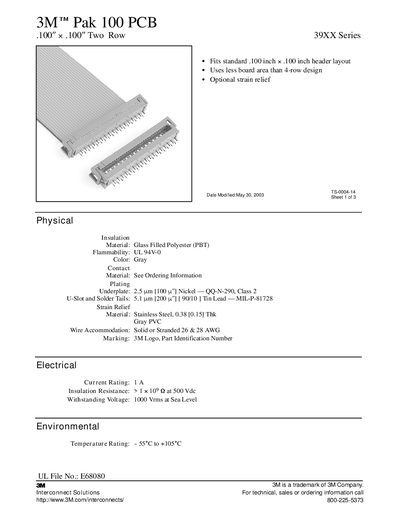

3M Pak 100 PCB .100" x .100" Two Row 39XX Series is a product of 3M Company. It fits standard .100 inch x .100 inch header layout. It uses less board area than 4-row design. It can be equipped with strain relief
The 3M Pak 100 PCB 39XX Series connector family provides a .100" × .100" two‑row layout with optional strain‑relief. It uses glass‑filled polyester (PBT) insulation, UL 94V‑0 flammability rating, and offers a compact design that saves board area compared with 4‑row alternatives.
Key specifications include a 1 A current rating, >1 × 10⁹ Ω insulation resistance at 500 VDC, and a temperature range of –55 °C to +105 °C. Ordering information, contact dimensions, and optional strain‑relief options are detailed in the document, along with warranty and liability notices.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Gray |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | -55 °C to +105 °C |
| UL File Number | E68080 |
The connector is rated for a continuous current of 1 A.
It is rated for operation from –55 °C up to +105 °C.
