The 3M D Sub Connector Metal EMI Junction Shell 3357-92XX Series provides EMI/ESD protection similar to aluminium die cast, easy assembly reduces time and labor to ensure low applied cost, optional thumbscrew kit, provides option in grounding for discrete wire applications, light weight, compact design
The 3357-92XX Series D Sub Connectors from 3M feature metal EMI junction shells that offer EMI/ESD protection comparable to aluminium die‑cast designs. They are lightweight, compact, and include optional grounding and thumbscrew kits to simplify assembly and reduce labor costs.

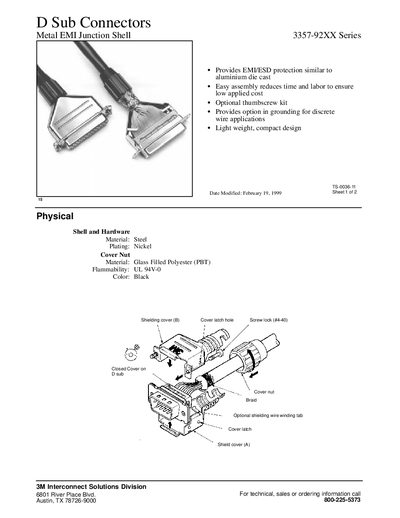

The datasheet lists the connector’s physical construction—steel shell with nickel plating, glass‑filled polyester (PBT) cover nut, UL 94V‑0 flammability rating, and black color. Detailed dimensions for each connector size (09, 15, 25, 37 positions) and ordering information, including optional thumb‑screw kits, are provided for engineers and purchasers.
| Shell material | Steel |
|---|---|
| Shell plating | Nickel |
| Cover nut material | Glass Filled Polyester (PBT) |
| Flammability rating | UL 94V-0 |
| Color | Black |
| Connector size 09 | 9‑position |
The shell is made of steel with a nickel plating.
The connector meets the UL 94V‑0 flammability standard.
