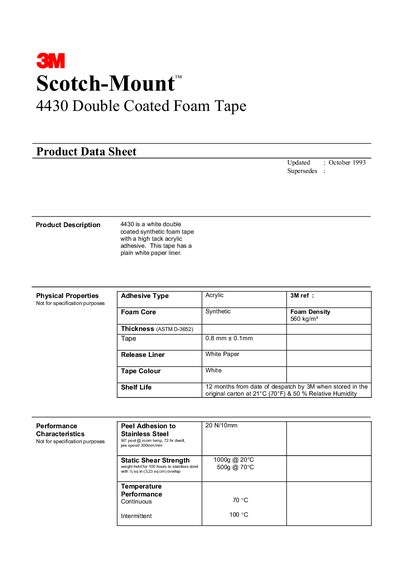

Scotch-Mount 4430 is a white double coated synthetic foam tape with a high tack acrylic adhesive. This tape has a plain white paper liner.
The 4430 Double Coated Foam Tape is a white, double‑coated synthetic foam tape with a high‑tack acrylic adhesive and a white paper liner. It is supplied in a 0.8 mm + 0.1 mm thickness and is intended for point‑of‑sale bonding, furniture trim, cable clips, and similar applications.
Performance data include a peel adhesion of 20 N/10 mm to stainless steel, static shear strength of 1000 g at 20 °C, and temperature limits of 70 °C continuous and 100 °C intermittent. Recommended application temperature is 21 °C to 38 °C, and the tape has a shelf life of 12 months when stored at 21 °C and 50 % RH.
| Adhesive Type | Acrylic |
|---|---|
| Foam Core | Synthetic Foam |
| Density | 560 kg/m³ |
| Thickness | 0.8 mm + 0.1 mm |
| Release Liner | White Paper |
| Tape Colour | White |
| Shelf Life | 12 months from date of despatch at 21 °C & 50 % RH |
| Peel Adhesion (Stainless Steel) | 20 N/10 mm |
| Static Shear Strength | 1000 g @ 20 °C |
| Continuous Temperature Performance | 70 °C |
| Intermittent Temperature Performance | 100 °C |
| Recommended Application Temperature Range | 21 °C to 38 °C (70 °F to 100 °F) |
The ideal application temperature range is 21 °C to 38 °C (70 °F to 100 °F).
The tape provides a peel adhesion of 20 N per 10 mm at room temperature after a 72‑hour dwell.
The tape can be used continuously up to 70 °C and intermittently up to 100 °C.
