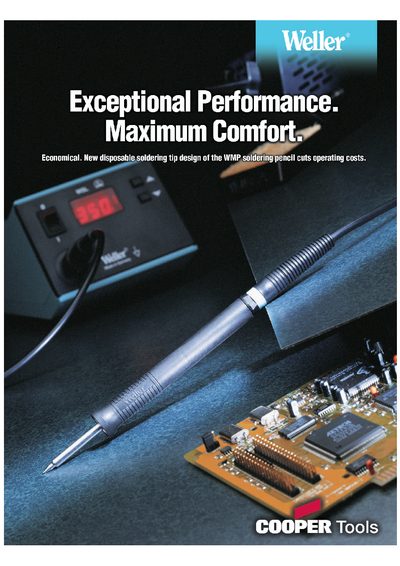

The Weller WMP micro pencil is a new design of soldering pencil with an integrated heating element in the handle, rather than in the tip. This provides users with a shorter tip-to-grip distance for more precise, comfortable control.
The WMP micro pencil uses a unique design that places the heating element in the handle, so only the tip needs to be replaced when worn. This saves material costs and extends the life of the heating element.
Weighing just 39 g, the pencil offers a short tip‑to‑grip distance for precise control, ergonomic handling, and fast temperature recovery. It works with all popular Weller digital stations and includes a range of interchangeable tips and accessories.
| Input Voltage | 230 V |
|---|---|
| Output Voltage | 24 V |
| Power Consumption | 95 W / 160 W |
| Temperature Range | 50 °C – 450 °C |
| Footprint | 166 × 115 × 101 mm |
| Weight (power unit) | 2.6 kg |
| Temperature Accuracy | ±9 °C |
| Temperature Stability | -6 °C + 6 °C |
| Heating Element Type | Nichrome wound |
| Iron Cord Length | 1.20 m |
The heating element stays in the handle, so only the tip is replaced when worn, saving money.
It weighs just 39 grams.
It can be set from 50 °C up to 450 °C.
A nichrome‑wound heating element is used.
