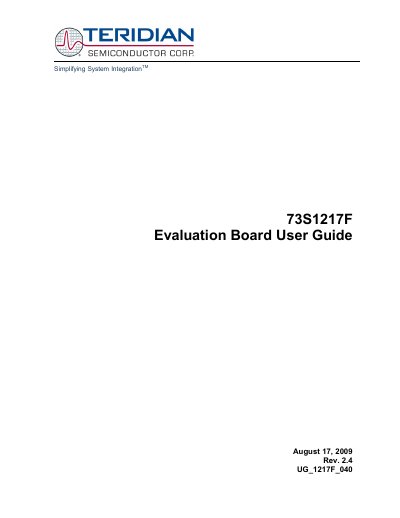

This document is the user guide for the 73S1217F evaluation board from Teridian Semiconductor Corporation. It describes the features and characteristics of the product.
The 73S1217F Evaluation Board from Teridian Semiconductor Corporation is a development platform for the 73S1217F Smart Card Controller. It can operate as a standalone board or with an In‑Circuit‑Emulator to develop and debug custom applications.
The guide covers hardware description, power options, USB CCID application setup, programming via ICE or the TSC Flash Programmer, and detailed interface specifications such as LCD, smart‑card, and USB connections. It also includes ordering information and related documentation references.
| USB interface | USB 2.0 full speed |
|---|---|
| Serial interface | RS‑232 |
| Smart card interfaces | Dual smart card interface |
| LCD module | 2 line x 16 character display |
| Power supply range | 2.7 V min / 6.5 V max / 400 mA |
| Real‑time clock | RTC capability |
