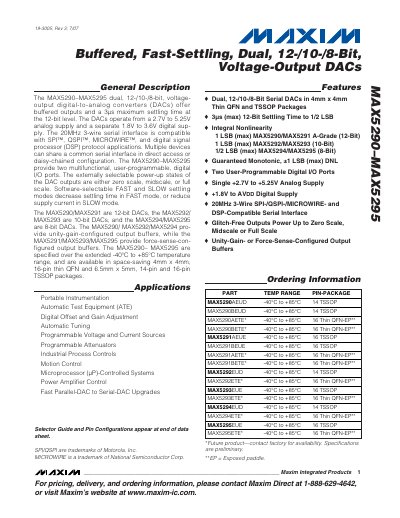

The MAX5290–MAX5295 dual, 12-/10-/8-bit, voltage- output digital-to-analog converters (DACs) offer buffered outputs and a 3µs maximum settling time at the 12-bit level.
The MAX5290‑MAX5295 family are dual, 12‑/10‑/8‑bit voltage‑output DACs with buffered outputs and a fast 3 µs maximum settling time at 12‑bit resolution. They operate from a 2.7 V to 5.25 V analog supply and a separate 1.8 V to AVDD digital supply, and support a 20 MHz 3‑wire serial interface compatible with SPI, QSPI, MICROWIRE and DSP protocols.
The devices are offered in compact 4 mm × 4 mm 16‑pin thin QFN and 6.5 mm × 5 mm 14‑pin or 16‑pin TSSOP packages, with two programmable digital I/O ports and selectable unity‑gain or force‑sense output buffers. They are specified for –40 °C to +85 °C operation and include detailed electrical, timing and package information.
| Resolution | 12‑bit (MAX5290/5291), 10‑bit (MAX5292/5293), 8‑bit (MAX5294/5295) |
|---|---|
| Analog Supply Voltage (AVDD) | 2.7 V to 5.25 V |
| Digital Supply Voltage (DVDD) | 1.8 V to AVDD |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Settling Time (12‑bit) | 3 µs |
| Serial Interface Speed | Up to 20 MHz |
The MAX5290 series has a maximum settling time of 3 µs at 12‑bit resolution.
They operate from an analog supply of 2.7 V to 5.25 V and a digital supply of 1.8 V up to the analog supply voltage.
MAX5290 and MAX5291 provide 12‑bit resolution, MAX5292 and MAX5293 provide 10‑bit, while MAX5294 and MAX5295 provide 8‑bit resolution.
