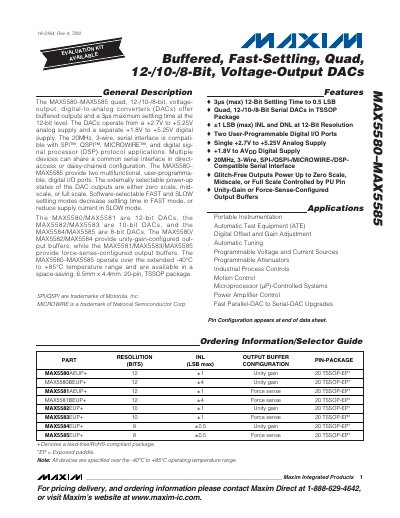

The MAX5580–MAX5585 series are quad digital‑to‑analog converters offering 12‑, 10‑, or 8‑bit resolution with buffered voltage outputs. They operate from a +2.7 V to +5.25 V analog supply and a separate +1.8 V to +5.25 V digital supply, and support a 20 MHz, 3‑wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP protocols. The devices include two user‑programmable digital I/O ports and selectable output‑buffer configurations (unity‑gain or force‑sense).
The datasheet details absolute maximum ratings, electrical and timing characteristics, power‑supply recommendations, layout guidelines, and application examples such as unipolar and bipolar output configurations. It also provides typical performance graphs for integral and differential non‑linearity across the supported code ranges.
| Resolution | 12‑/10‑/8‑bit |
|---|---|
| Analog Supply Voltage | +2.7 V to +5.25 V |
| Digital Supply Voltage | +1.8 V to +5.25 V |
| Serial Interface Speed | Up to 20 MHz |
| Maximum Settling Time (12‑bit) | 3 µs (max) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 6.5 mm × 4.4 mm, 20‑pin TSSOP |
| Digital I/O Ports | 2 user‑programmable ports |
The maximum settling time is 3 µs (max) for 12‑bit resolution.
It needs an analog supply of +2.7 V to +5.25 V and a digital supply of +1.8 V to +5.25 V.
The devices operate from –40 °C to +85 °C.
Two multifunctional, user‑programmable digital I/O ports are provided.
