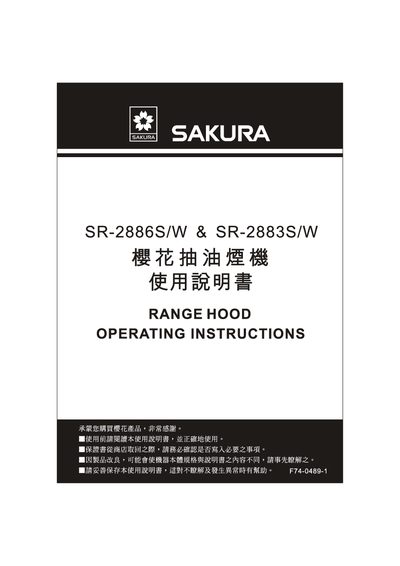

This manual provides safety guidelines, installation steps, and operating instructions for the Sakura SR-2886S/W range hood. It covers power connection, proper venting, mounting height, and how to secure the unit to ensure safe and efficient extraction of cooking fumes.
The guide also details routine maintenance, cleaning of the oil cup and filters, and troubleshooting tips. Technical specifications such as dimensions, weight, motor type, and performance data are listed for reference. This manual is written in Chinese.
| Model | SR-2886 / SR-2883 |
|---|---|
| Net Weight | 12.8 kg (SR‑2886) / 12.1 kg (SR‑2883) |
| Gross Weight | 15.2 kg (SR‑2886) / 14.5 kg (SR‑2883) |
| Machine Dimensions (W×D×H) | 710 mm × 565 mm × 160 mm |
| Voltage | 220 V ~ 50 Hz |
| Motor Type | Internal rotor twin motors |
| Exhaust Hole Diameter | 152 mm |
| Lamp Power | 40 W white lamp |
| Motor Speed | Low 1500 RPM / High 1600 RPM |
| Air Exhaust Volume | 900 m³/h (SR‑2886) / 760 m³/h (SR‑2883) |
| Power Consumption | 165 W |
The bottom of the hood must be at least 65 cm above the cooking surface.
Connect the hood to a 220 V, 50 Hz power supply.
It has two speed settings: low (1) and high (2).
