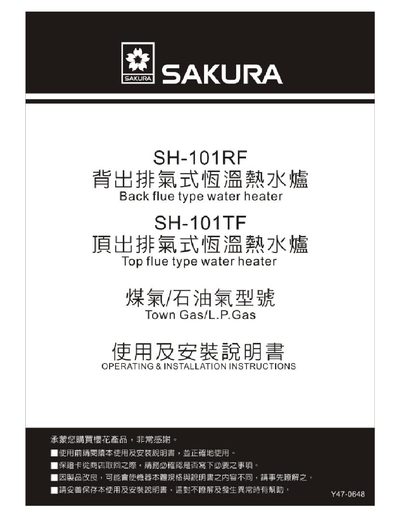

This manual provides safety instructions and installation requirements for the Sakura SH-101RF (back‑flue) and SH-101TF (top‑flue) gas water heaters. It emphasizes the need for qualified gas technicians, proper venting, and adherence to local gas safety regulations.
The guide details the steps for installing the flue duct, connecting cold and hot water, and setting up the gas supply. It also lists the technical specifications such as dimensions, gas type, operating pressure, voltage, and safety devices, helping installers verify correct configuration before use. This manual is written in Chinese.
| Model | SH-101RF / SH-101TF |
|---|---|
| Dimensions | 540 mm (H) × 130 mm (D) × 3500 mm (W) |
| Weight | 15 kg |
| Gas type | LPG / Town Gas |
| Operating gas pressure | 2.9 kPa (LPG) / 1.5 kPa (Town Gas) |
| Voltage | AC 220 V 50 Hz |
| Power consumption | 35 W |
The heater is compatible with LPG and town gas.
The required pressure is 2.9 kPa for LPG and 1.5 kPa for town gas.
It operates on AC 220 V at 50 Hz.
