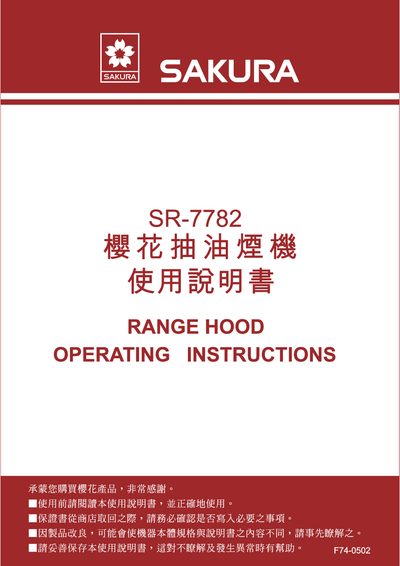

This manual explains how to install the Sakura SR-7782 range hood, including electrical requirements, proper placement, and securing the unit level. It details the connection of the exhaust duct, required clearances, and steps for mounting the hood safely.
The guide also covers operation of the motor and lighting controls, routine cleaning of the oil filter and oil tray, and safety precautions such as avoiding water exposure and using only qualified personnel for repairs. Maintenance tips and specifications are provided to help keep the hood performing efficiently. This manual is written in Chinese.
| Gross Weight | 29.5 kg |
|---|---|
| Machine Dimensions (W×D×H) | 1000 × 520 × 132 mm |
| Voltage | 220 V, 50 Hz |
| Motor Type | Internal rotor, single motor |
| Exhaust Hole Diameter | 152 mm |
| Lamp | T5 14W 549L (mm) |
| Motor Speeds | 1600 / 1150 / 750 RPM |
| Air Exhaust Volume | 900 / 660 / 500 m³/h |
It must be connected to a 220 V, 50 Hz power source.
The filter mesh should be cleaned at least every two weeks and never exceed one month between cleanings.
The minimum clearance is 65 cm from the cooking surface to the bottom of the hood.
The motor can run continuously for up to 9 minutes before it should be switched off.
