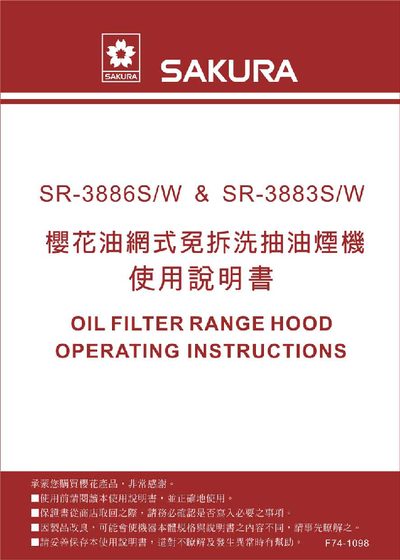

This manual explains how to safely install and set up the Sakura SR-3886S/W range hood, including required clearances, electrical connections, and mounting procedures. It also outlines safety precautions to prevent hazards during use.
Detailed operating instructions cover fan speed control, lighting, oil‑filter cleaning, and routine maintenance to keep the hood performing efficiently. Troubleshooting tips and part numbers are provided for service technicians. This manual is written in Japanese.
| Voltage | 220V‑50Hz |
|---|---|
| Motor speed | 1600 RPM / 1500 RPM |
| Air exhaust volume | 900 m³/h (model SR‑3886) / 760 m³/h (SR‑3883) |
| Power consumption | 165 W |
| Lamp | 40 W white bulb |
A minimum clearance of 65 cm must be kept between the bottom of the hood and the wall.
Remove the oil cup, soak the external filter mesh in warm neutral detergent, rinse and reinstall; replace the internal filter every three months.
The hood operates on 220 V, 50 Hz mains power.
Press the speed control button; "1" selects low speed, "2" selects high speed.
