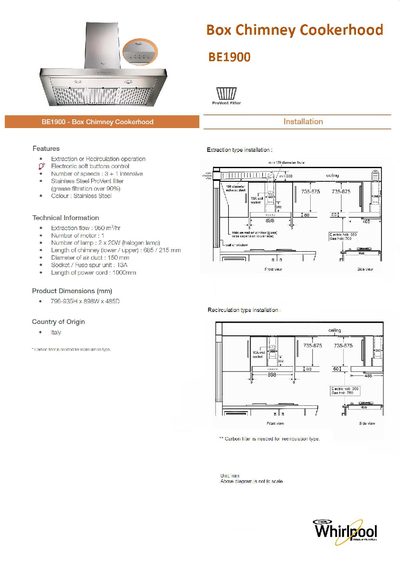

The BE1900 box chimney cookerhood from Whirlpool is a stainless‑steel ventilation unit designed for both extraction and recirculation installations. It includes a ProVent grease filter with over 90% filtration efficiency and optional carbon filter for recirculation mode.
The manual covers installation steps, control operation with electronic soft buttons, and detailed technical data such as fan speeds, airflow rate, dimensions, and electrical requirements. All specifications are listed to help users set up and maintain the appliance correctly.
| Extraction flow | 950 m³/hr |
|---|---|
| Number of speeds | 3 + 1 intensive |
| Number of motor | 1 |
| Number of lamps | 2 x 20W halogen |
| Length of chimney (lower/upper) | 685 / 215 mm |
| Diameter of air duct | 150 mm |
| Socket / Fuse spur unit | 13 A |
| Length of power cord | 1000 mm |
| Filter type | ProVent grease filter (over 90% filtration) |
The BE1900 provides three regular speeds plus one intensive speed.
The unit delivers an extraction flow of 950 cubic meters per hour.
It uses two 20 W halogen lamps.
