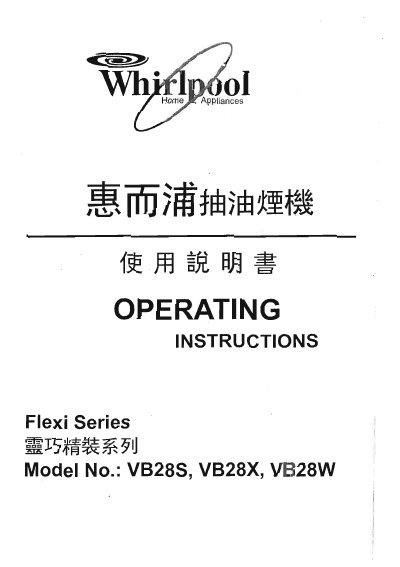

Whirlpool VB28S XB28X VB28W range hood installation Manual

About this manual

This manual provides step‑by‑step instructions for installing the VB28S, VB28X and VB28W range hoods. It covers unpacking, wall‑mount or built‑in mounting, ducting requirements, electrical connections and safety precautions.

The guide also includes parts identification, control panel operation, maintenance, cleaning procedures and technical specifications such as voltage, lamp wattage and dimensions.

What's inside

• Parts Identification
• Precautions
• Installation
• Control Panel
• Maintenance and Cleaning
• Wiring Diagram
• Specifications

Specifications

Frequently asked questions

What is the recommended installation height for the hood?

The best recommended height is 65‑80 cm from the stove to the bottom of the hood.

What type of bulb should be used in the hood?

A 25 W 220 V lamp is required.

Can the hood be wall‑mounted or built‑in?

Yes, the unit can be wall‑mounted or built‑in under the kitchen cabinet.
