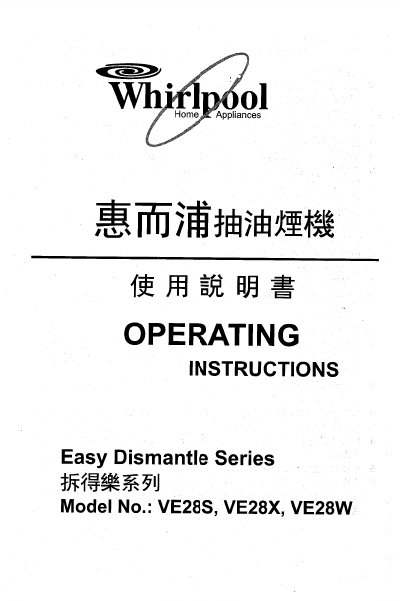

This manual provides safety precautions and step‑by‑step instructions for installing Whirlpool VE28S, VE28X, and VE28W range hoods in a home kitchen. It explains required grounding, recommended mounting heights, exhaust duct routing, and wiring connections.
The guide also describes operation controls, lamp replacement, cleaning procedures, and easy dismantling without tools. Technical specifications and a wiring diagram are included for reference. This manual is written in Chinese.
| Voltage | 220-240V |
|---|---|
| Frequency | 50Hz |
| Motor Power | 80W x2 |
| Recommended Exhaust Duct Diameter | 6 inches |
A 6‑inch diameter exhaust duct is recommended to maximize suction efficiency.
